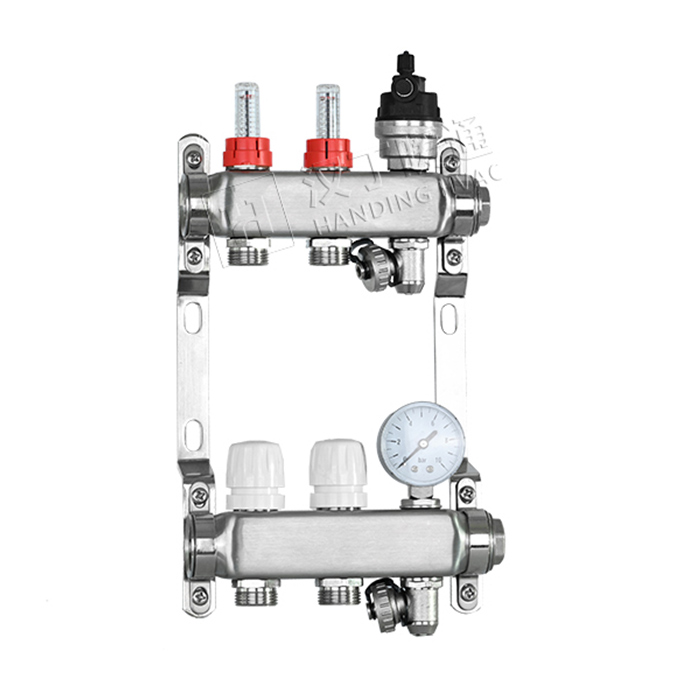

2-Port Manifold with Filling Valves H2004B

Name: 2-Port Manifold with Filling Valves H2004B
Brand: HANDING
SKU: 00009
Rating: 4.1 (55 reviews)

2-Port Manifold with Filling Valves H2004B can accurately control and fill the system, and is widely used in fluid control systems, especially in situations where precise control of fluid flow direction and flow rate is required.

Request An Inquiry PDF

Stainless Steel Underfloor Heating Manifold With Drain Valve and Pressure Gage

Product details Specification Quality Control Related Products

Product details

Revolutionize thermal energy management with our Modular Heat Interface Units (HIUs). Configurable for autonomous heating and domestic hot water production, choose from top or bottom primary circuit connections. Available in standard and compact versions for diverse heating system requirements.

Specification

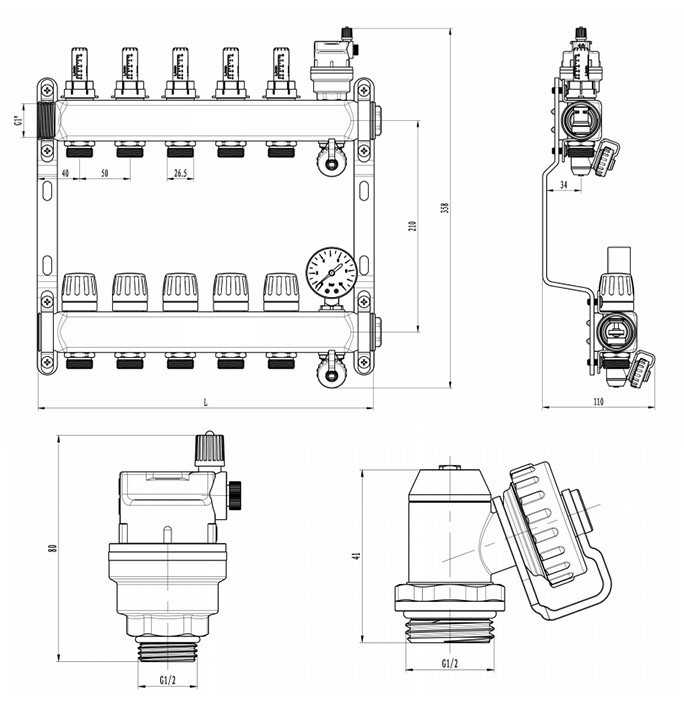

Dimension
Specification	Ways	L
G1"×3/4"	2	126
G1"×3/4"	3	176
G1"×3/4"	4	226
G1"×3/4"	5	276
G1"×3/4"	6	326
G1"×3/4"	7	376
G1"×3/4"	8	426
G1"×3/4"	9	476
G1"×3/4"	10	526
G1"×3/4"	11	576
G1"×3/4"	12	626

Test precedure
Material	Main body	Stainless steel 304
	Connector	Brass
	Seal	EPDM
Work performance	Maximum allowable continuous working temperature/pressure:- 30°~100° / < 10 bar
Working medium	medium1	water
	medium2	water/Ethylene glycol 50/50%
	medium3	water/propylene glycol 50/50%
Flowmeter	display scale	1~5L/min
Flowmeter	display tolerance	±10%
Connection	supply/return	G1"F
	branch connection	G3/4"M
	flowmeter connection	G1/2"M
