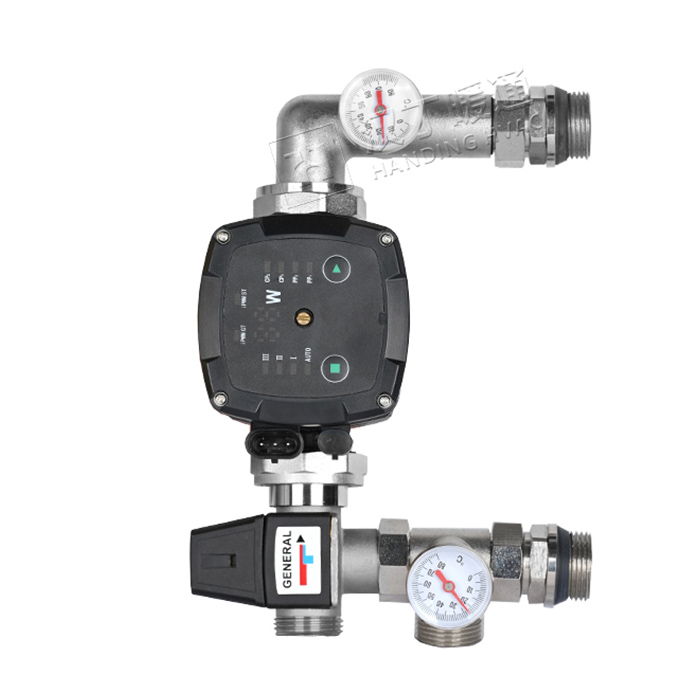

Mixing valve and Control Unit

Name: Mixing valve and Control Unit
Brand: HANDING
SKU: 00008
Rating: 4.1 (54 reviews)

The mixing valve and control unit are core components designed for intelligent floor heating systems. They integrate high-precision mixing valves and intelligent control units to achieve efficient, energy-saving, comfortable and stable heating experience through dynamic adjustment of the ratio of cold and hot water, programmed flow management and precise temperature control. Compatible with a variety of heat sources, it can be flexibly adapted to floor heating systems of different sizes.

Inquiry Now PDF

Product details Specification Quality Control Related Products

Product details

The Adjustable Mixing Valve is designed for precise control and regulation of the heat transfer fluid temperature in heating systems. To ensure optimal functionality, pair it with the H7000 series thermostat with a surface-mounted sensor. This valve guarantees efficient temperature management for a reliable heating experience.

Cold and hot water ratio adjustment: The circulation pumpdesign is adopted to achieve precise adjustment of the cold and hot water mixing ratio.

Programmed flow management: Supports preset flow and optimizes the hydraulic balance of the system. With multi-channel room temperature control function, the flow of each branch can be managed independently.

Specification

Material: Cu-57-3 brass

Maximum pressure：10bar

Adjustable temperature range：20~60℃

Work temperature：0~100℃

Power Output (Watts/Kw): 15KW

Power Voltage Supply: 230V

Temperature stability：+/-1°C

Pump connection thread: G 11/2"

Connection thread: lSO 228 standard

Quality Control

By monitoring and analyzing data in a timely manner, we can better understand the quality status of products and take corresponding measures to improve product quality and consistency.

Why HANDING

The quality control of products is a link we care about very much. In order to ensure that each shipment of our customers leaves the factory perfectly, we design and implement a detailed inspection procedure.

Factory & Team

HANDING utilizes specific workshops when manufacturing different aspects of our HVAC products. With a strict QC system in each workshop, we ensure the final products provide long-lasting protection.

Shopping List

Provide customers with one-stop procurement solutions, help customers save time and cost, improve procurement efficiency, and ensure that purchased products meet customer requirements and expectations.
