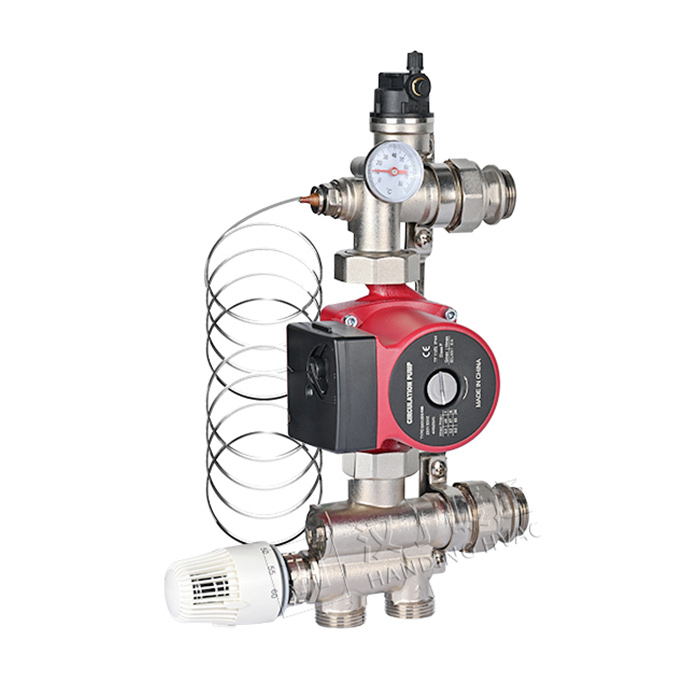

Manifold Mixing Unit

The manifold mixing unit is an innovative fluid management device that integrates efficient water flow distribution, precise mixing control, stable pumping and delivery, and intelligent automatic exhaust functions. It is designed for the efficient integrated operation of complex fluid systems. The combination of its modular structure and intelligent control technology can significantly optimize the process flow and reduce energy consumption.

Inquiry Now PDF
Product details



Multi-channel intelligent distribution: The adjustable diversion structure realizes balanced distribution of multi-branch water flow, supports dynamic pressure compensation, ensures the consistency of flow in each circuit, and adapts to the needs of complex pipe network systems.

Remote control: Thermostatic head of the mixing valve with a remote sensor. The adjustable range is 20°C to 70°C
Fully automatic exhaust technology: With an intelligent air vent valve, it monitors and discharges the accumulated gas in the pipeline in real time, completely eliminates the risk of gas blockage, noise and cavitation, and ensures continuous and stable operation of the system.

analysis

1Automatic air-vent

2Temperature gauge 0℃-80℃

3Thermostatic sensor phial located in pocket

4Mounting bracket

5Flow increase valve(thermostatic model only)

6Mixing valve thermostatic head with remote sensor. adjustable from 20°C to 70°C with M30x1.5 securing ring.

7Mixing valve body with M30x1.5 thread for fixing the thermostatic head

8Primary flow connection.1"BSP

9Primary return connection.1"BSP

101BSP UFH manifold return coupling with union

111"BSP UFH manifold flow coupling with union

Specification
Test precedure
Primary circuit maximum temperature: 90℃ Climatic regulation: 11.5kW
Maximum pressure: 10bar Mixing valve pressure drop
(thermostatit regulation):
Kv3
Primary circuit max △P: 1bar Pressure drops with open bypass valve
(thermostatic regulation):
Kvmax4.8
Secondary control range:
(thermostatic regulation)
20℃-70℃ Thermometer scale: 0℃-80℃
Heating capacity that can be exchanged
at AT7℃, △Pavailable 0.25 bar:
  Mixing unit inlet connections: 1""BSP male
Thermostatic regulation: 10kW by-pass pos.0 Mixing unit inlet connections: DN24x19tpi
Thermostatic regulation: 12.5kW by-pass pos.5 Lowara Ecocirc circulator connections: 1"1/2BSP
male union



Mixing valve unit flow meter
Primary circuit maximum temperature: 90℃ Climatic regulation:
Scale display Flow rate of mixed water(L/m) Flow rate of the hot water(L/m)
0 24.7 31.3
1 23.1 32
2 22.1 32.7
3 21.5 32.7
4 21.5 33.1
5 21.3 33.9
Quality Control
By monitoring and analyzing data in a timely manner, we can better understand the quality status of products and take corresponding measures to improve product quality and consistency.
pro
The quality control of products is a link we care about very much. In order to ensure that each shipment of our customers leaves the factory perfectly, we design and implement a detailed inspection procedure.
pro
HANDING utilizes specific workshops when manufacturing different aspects of our HVAC products. With a strict QC system in each workshop, we ensure the final products provide long-lasting protection.
pro
Provide customers with one-stop procurement solutions, help customers save time and cost, improve procurement efficiency, and ensure that purchased products meet customer requirements and expectations.
