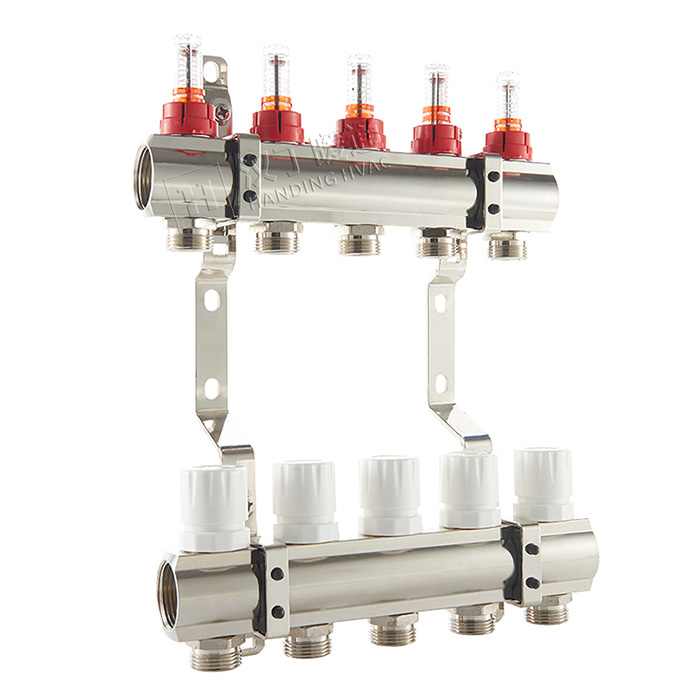

Brass Underfloor Heating Manifold With Flow Meter H2002

Brass Underfloor Heating Manifold With Flow Meter H2002 is based on precision brass casting technology, integrated with real-time flow meter and precise flow regulator, with both high temperature resistance and corrosion resistance, suitable for home, commercial floor heating and radiator systems, and is the core component of modern floor heating systems.

Inquiry Now PDF
Product details

Integrated flow meter and regulating valve: Each branch pipe is equipped with a visual flow meter to monitor the water flow of each circuit in real time, equipped with an adjustable flow regulating valve, and supports manual precise flow control.



High temperature resistant brass material: The main body is made of high-strength brass forging, which can withstand high temperatures for a long time and has strong corrosion resistance.



Convenient installation and maintenance: The integrated structure of the manifold and the water collector supports multi-circuit expansion.

Specification
Test precedure

Material

Manifold body

Brass



Port connection

Brass



Seal

EPDM

Working Pressure

0-10bar



Working temperature

-10℃ to 70℃



Wokring Media

Water



Flow

1-5L/Min



Flow tolerance

±10%





Test precedure

Sealing test

Make water pressure test under 8-10bar and keep for 1min,to make sure there is no leakage

High temperature test

Test manifold set under temperature 80℃ enviroment,to make sure there is no leakage and cracking

Low temperature test

Test manifold set under temperature -30℃ enviroment,to make sure there is no leakage and cracking

Flow test

make sure the tolerance is  ±10%

flow meter burst pressure test

make burst pressure test under 10Mpa to make sure there is no cracking.

insert valve life test

make 100 thousand time using life test there is no broken

Quality Control
By monitoring and analyzing data in a timely manner, we can better understand the quality status of products and take corresponding measures to improve product quality and consistency.
pro
The quality control of products is a link we care about very much. In order to ensure that each shipment of our customers leaves the factory perfectly, we design and implement a detailed inspection procedure.
pro
HANDING utilizes specific workshops when manufacturing different aspects of our HVAC products. With a strict QC system in each workshop, we ensure the final products provide long-lasting protection.
pro
Provide customers with one-stop procurement solutions, help customers save time and cost, improve procurement efficiency, and ensure that purchased products meet customer requirements and expectations.
