Name: Brass Radiant Heating Manifold H2001
Brand: HANDING
SKU: 00024
Rating: 4.1 (62 reviews)

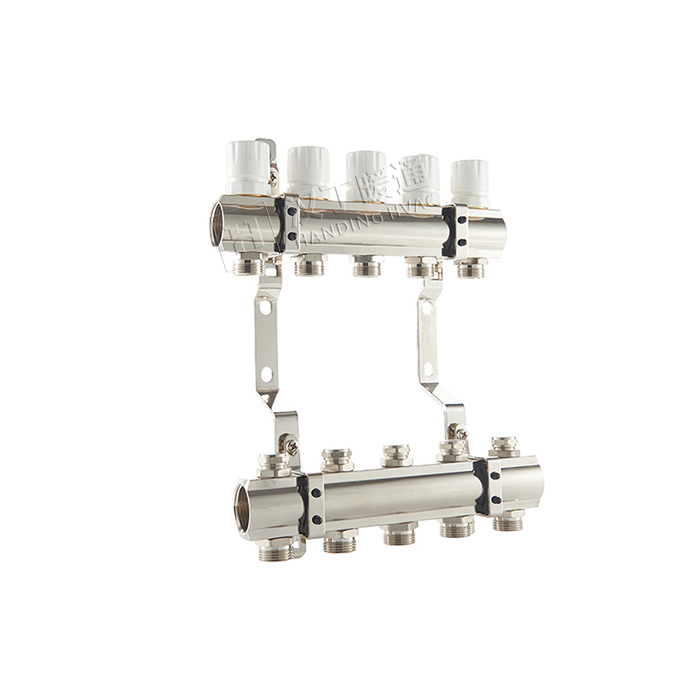

Brass Radiant Heating Manifold H2001

The brass radiant heating manifold H2001 is a precision fluid distribution component designed for efficient thermal management. Its advantage lies in the deep integration of the excellent performance of brass materials and innovative structural design, providing users with a heating solution with high reliability and low maintenance costs.

Inquiry Now

PDF

Product details

Strong corrosion resistance: High-purity brass material can operate stably in a humid environment or a system containing weak acidic media for a long time.

Efficient heat conduction: Brass has a high thermal conductivity and can quickly transfer heat, ensuring that the fluid is evenly heated in the manifold and reducing energy loss.

Compact design: Integrated structure, easily embedded in narrow or complex pipeline layout. Lightweight body, easier to carry and install

Specification

Test precedure
Material	Manifold body	Brass
	Port connection	Brass
	Seal	EPDM
Working Pressure	0-10bar
Working temperature	-10℃ to 70℃
Wokring Media	Water
Flow	1-5L/Min
Flow tolerance	±10%

Test precedure
Sealing test	Make water pressure test under 8-10bar and keep for 1min,to make sure there is no leakage
High temperature test	Test manifold set under temperature 80℃ enviroment,to make sure there is no leakage and cracking
Low temperature test	Test manifold set under temperature -30℃ enviroment,to make sure there is no leakage and cracking
Flow test	make sure the tolerance is ±10%
flow meter burst pressure test	make burst pressure test under 10Mpa to make sure there is no cracking.
insert valve life test	make 100 thousand time using life test there is no broken
