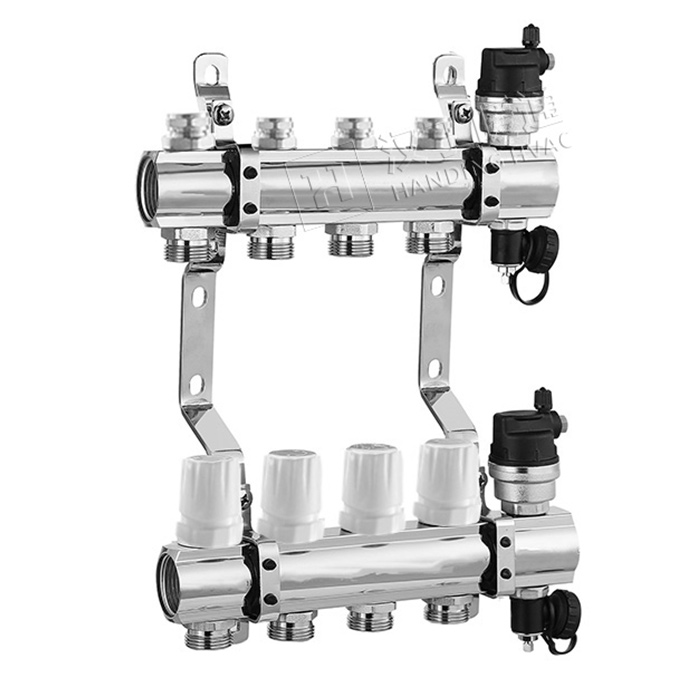

4-Port Brass Heating Manifold With Filling Valves H2037

The 4-port brass heating manifold with filling valve H2037 is made of high-strength brass material, which is corrosion-resistant and high-temperature resistant. Its 4-port design supports multi-circuit independent connection and regional temperature adjustment. The integrated filling valve can be manually replenished with water and prevent overpressure. The overall maintenance process is simplified through the tool-free quick-connect structure.

Inquiry Now PDF
Product details

Integrated filling valve design: built-in convenient filling valve, supports fast water injection, simplifies system initialization and maintenance process, and ensures safe and efficient operation.


Accurate temperature control: 4-port brass diversion structure, with high-precision regulating valve, realizes multi-zone independent temperature control, easily balances system thermal distribution, and improves energy utilization efficiency.


Durable material: Made of high-strength brass casting, it is corrosion-resistant and high-temperature resistant, suitable for high-pressure environments, ensuring long-term stable operation and reducing replacement costs.


Exhaust and drainage system: integrated automatic exhaust valve and low-level drain port, quickly drain the residual water in the pipeline, and no complicated disassembly is required for maintenance.

Specification
Technical Data

Material

Manifold body

Brass

Port connection

Brass

Seal

EPDM

Working Pressure

0-10bar

Working temperature

-10℃ to 70℃

Wokring Media

Water

Flow

1-5L/Min

Flow tolerance

±10%



Test precedure

Sealing test

Make water pressure test under 8-10bar and keep for 1min,to make sure there is no leakage

High temperature test

Test manifold set under temperature 80℃ enviroment,to make sure there is no leakage and cracking

Low temperature test

Test manifold set under temperature -30℃ enviroment,to make sure there is no leakage and cracking

Flow test

make sure the tolerance is  ±10%

flow meter burst pressure test

make burst pressure test under 10Mpa to make sure there is no cracking.

insert valve life test

make 100 thousand time using life test there is no broken
