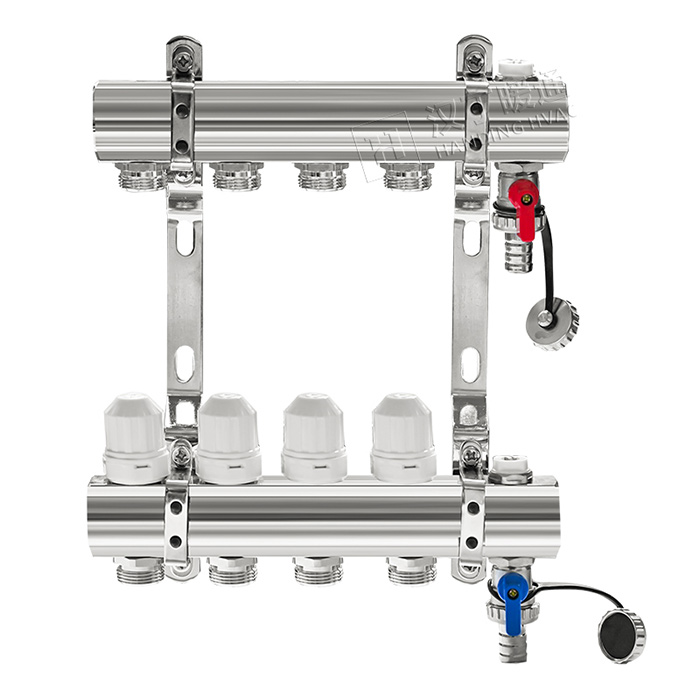

Brass Manifold with Drain and Air Vent Valve H2002C

Name: Brass Manifold with Drain and Air Vent Valve H2002C
Brand: HANDING
SKU: 00056
Rating: 4.1 (78 reviews)

Brass manifold with drain and exhaust valves H2002C is a brass manifold designed for efficient fluid control. It integrates drainage, exhaust and flow regulation functions, and meets the diversified needs of complex systems with excellent durability and precision. The main body is forged with high-grade brass, which has both corrosion resistance and high pressure resistance to ensure long-term reliable operation.

Inquiry Now PDF

Brass Manifold With Drain and Air Vent Valve H2002C

Product details Specification Quality Control Related Products

Product details

All-brass structure: Selected brass material, durable, rust-resistant, high-temperature resistant, suitable for harsh working conditions.

Convenient drain valve design: One-button drain valve can quickly remove residual liquid in the pipeline, simplify maintenance procedures, and prevent impurity deposition.

Exhaust function: The built-in exhaust valve continuously exhausts air in the system, eliminates air blockage problems, and ensures continuous and stable fluid delivery.

Accurate flow control: Integrated adjustable flow regulator, flexible adaptation to different pressure and flow requirements, improve system energy efficiency.

Specification

Technical Data
Material	Manifold body	Brass
	Port connection	Brass
	Seal	EPDM
Working Pressure	0-10bar
Working temperature	-10℃ to 70℃
Wokring Media	Water
Flow	1-5L/Min
Flow tolerance	±10%

Test precedure
Sealing test	Make water pressure test under 8-10bar and keep for 1min,to make sure there is no leakage
High temperature test	Test manifold set under temperature 80℃ enviroment,to make sure there is no leakage and cracking
Low temperature test	Test manifold set under temperature -30℃ enviroment,to make sure there is no leakage and cracking
Flow test	make sure the tolerance is ±10%
flow meter burst pressure test	make burst pressure test under 10Mpa to make sure there is no cracking.
insert valve life test	make 100 thousand time using life test there is no broken

Quality Control

By monitoring and analyzing data in a timely manner, we can better understand the quality status of products and take corresponding measures to improve product quality and consistency.

Why HANDING

The quality control of products is a link we care about very much. In order to ensure that each shipment of our customers leaves the factory perfectly, we design and implement a detailed inspection procedure.

Factory & Team

HANDING utilizes specific workshops when manufacturing different aspects of our HVAC products. With a strict QC system in each workshop, we ensure the final products provide long-lasting protection.

Shopping List

Provide customers with one-stop procurement solutions, help customers save time and cost, improve procurement efficiency, and ensure that purchased products meet customer requirements and expectations.
